Gattai !!!! Customized Gashapon-"DX" Mighty Brothers XX Gashat

And here we go!!!!... (Complicated work, but the concepts are simple... Hence I shall talk about the concepts only, do try out (at your own risks) and have fun ... and sweat too...) First the Double-Up orange gashat needs to swap the 2 little switches' circuit paths to behave as if it is in Level 1-2 slot of the DX Gamer Driver (cut off the end of the original path and solder to the other path at the most convenient position, refer to picture)...

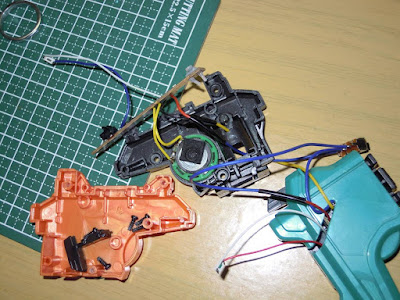

To decide to Level-Up or Double-Up, a switch is used to switch over the battery's positive to that particular circuit board desired... white LEDs are also added....


The final attack (Kimewaza) sound is included in the gashats and can be activated with the 2 little buttons depressed and followed by pressing the big (thumb-pressed) button. However, as the big button is hidden when the gashat is in the DX Gamer Driver, I connect a switch parallel to it for the final attack (Kimewaza) to be activated...


The 2 gashats (main body) are then hot-glued together (while they are placed inside the DX Gamer Driver, so as to accurately space the distance between them)...


Hole is marked out for the front display for the images...


... and cut out...


ABS plastic sheets are used to make the side walls to encase the images... They have to be painted black...


Internal images are pasted... The Level 10 image is self-printed as it needs to be reversed for the mirror to be reflected... Also hot glued the LEDs to position...

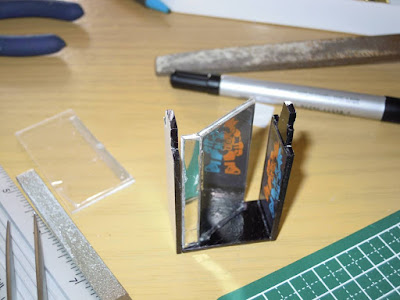

Made a single-direction-view mirror using the film and a clear PVC sheet...


Should not have been lazy and used the green gashat plate without flipping over... Now the space is too small for the mirror to be angled properly at 45 degrees with ample space.... sigh... anyway...

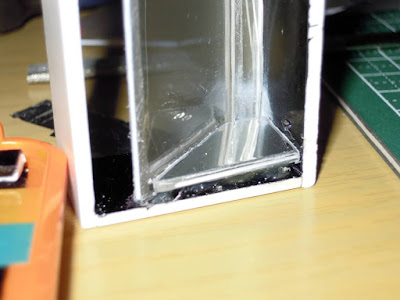

A small piece of the mirror is cut off and placed at the bottom to reflect the light up at the legs...

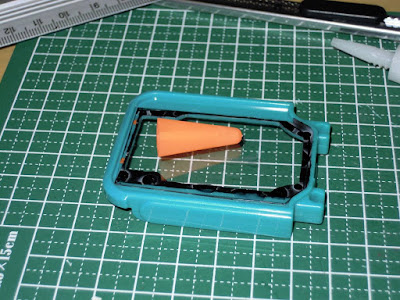

Front display hole is covered with a piece of transparent plastic recycled from old Transformers packaging box...


Assemble them... do some touching up and...

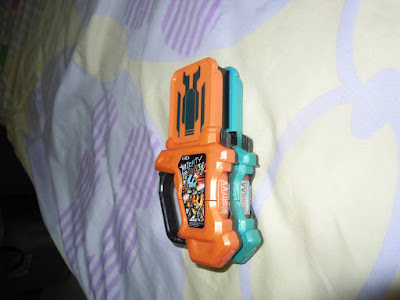

... Done!!!!! Not very good but still workable... hahahaha...
